LOADING & SHIPPING OF LAMINATE FLOORING

Have already visited: 77801/08/2018
THICKNESSPLANK SIZECARTONPALLET20' CONTAINER40' CONTAINER
7MM1215*196*7mm10pcs/ctn65ctns/plt20plts/20GP24plts/40GP
16kgs(35.5lbs)/ctn, 1040kgs/plt20800kgs/20GP24960kgs/40GP
2.38sqm(25.6sqft)/ctn154.7sqm(1665sqft)/plt3096sqm(33300sqft)/20GP3712.8sqm/40GP
THICKNESSPLANK SIZECARTONPALLET20' CONTAINER40' CONTAINER
8MM1215*195*8mm10pcs/ctn55ctns/plt20plts/20GP26plts/40GP
17.5kgs(38.9lbs)/ctn962.5kgs/plt19250kgs/20GP25025kgs/40GP
2.37sqm(25.5sqft)/ctn130.4sqm(1403sqft)/plt2608sqm(28050sqft)/20GP3390sqm/40GP

1215*165*8mm11pcs/ctn60ctns/plt20plts/20GP28plts/40GP
15.2kgs(33.8lbs)/ctn912kgs/plt18240kgs/20GP25536kgs/40GP
2sqm(21.5sqft)/ctn120sqm(1291sqft)/plt2405sqm(25800sqft)/20GP3360sqm/40GP

1215*143*8mm18pcs/ctn42ctns/plt20plts/20GP28plts/40GP
21.5kgs(47.8lbs)/ctn903kgs/plt18060kgs/20GP25284kgs/40GP
3.13sqm(33.7sqft)/ctn131.5sqm(1415sqft)/plt2630sqm(28299sqft)/20GP3682sqm/40GP

1215*127*8mm16pcs/ctn56ctns/plt20plts/20GP26plts/40GP
17kgs(37.8lbs)/ctn952kgs/plt19040kgs/20GP24752kgs/40GP
2.47sqm(26.6sqft)/ctn138.3sqm(1488sqft)/plt2766sqm(29760sqft)/20GP3595.8sqm/40GP

1215*126*8mm18pcs/ctn48ctns/plt20plts/20GP28plts/40GP
19kgs(42.2lbs)/ctn912kgs/plt18240kgs/20GP25536kgs/40GP
2.76sqm(29.7sqft)/ctn132.5sqm(1425sqft)/plt2645sqm(28510sqft)/20GP3710sqm/40GP

1215*91*8mm20pcs/ctn55ctns/plt20plts/20GP30plts/40GP
15.2kgs(33.8lbs)/ctn836kgs/plt16720kgs/20GP25080kgs/40GP
2.21sqm(23.8sqft)/ctn121.6sqm(1309sqft)/plt2432sqm(26180sqft)/20GP3648sqm/40GP

808*128*8mm16pcs/ctn56ctns/plt28plts/20GP36plts/40GP
11.4kgs(25.3lbs)/ctn638.4kgs/plt17875kgs/20GP22982kgs/40GP
1.66sqm(17.8sqft)/ctn93sqm(997sqft)/plt2603sqm(27916sqft)/20GP3348sqm/40GP
THICKNESSPLANK SIZECARTONPALLET20' CONTAINER40' CONTAINER
12MM1215*195*12mm8pcs/ctn50ctns/plt20plts/20GP26plts/40GP
19.6kgs(43.6lbs)/ctn980kgs/plt19600kgs/20GP25480kgs/40GP
1.9sqm(20.4sqft)/ctn95sqm(1020sqft)/plt1900sqm(20400sqft)/20GP2470sqm/40GP

1215*165*12mm10pcs/ctn45ctns/plt20plts/20GP27plts/40GP
21kgs(46.7lbs)/ctn945kgs/plt18900kgs/20GP25515kgs/40GP
2sqm(21.5sqft)/ctn90sqm(968sqft)/plt1804sqm(19411sqft)/20GP2430sqm/40GP

1215*145*12mm10pcs/ctn48ctns/plt20plts/20GP29plts/40GP
18.2kgs(40.4lbs)/ctn873.6kgs/plt17472kgs/20GP25335kgs/40GP
1.76sqm(19sqft)/ctn84.5sqm(910sqft)/plt1690sqm(18200sqft)/20GP2450sqm/40GP

1215*125*12mm12pcs/ctn48ctns/plt20plts/20GP28plts/40GP
18.8kgs(41.8lbs)/ctn902.4kgs/plt18048kgs/20GP25267kgs/40GP
1.82sqm(19.6sqft)/ctn87.4sqm(941sqft)/plt1748sqm(18829sqft)/20GP2447sqm/40GP

1215*101*12mm12pcs/ctn56ctns/plt20plts/20GP30plts/40GP
15.2kgs(33.8lbs)/ctn851.2kgs/plt17024kgs/20GP25536kgs/40GP
1.47sqm(15.8sqft)/ctn82.3sqm(884.8sqft)/plt1646sqm(17696sqft)/20GP2469sqm/40GP

1215*91*12mm14pcs/ctn55ctns/plt20plts/20GP29plts/40GP
16kgs(35.6lbs)/ctn880kgs/plt17600kgs/20GP25520kgs/40GP
1.55sqm(16.7sqft)/ctn85.3sqm(918.5sqft)/plt1706sqm(18270sqft)/20GP2474sqm/40GP

805*125*12mm16pcs/ctn48ctns/plt18plts/20GP25plts/40GP
21.5kgs(47.8lbs)/ctn1032kgs/plt18576kgs/20GP25800kgs/40GP
1.61sqm(17.3sqft)/ctn77.3sqm(623.6sqft)/plt1391sqm(14978sqft)/20GP1932.5sqm/40GP
THICKNESSPLANK SIZECARTONPALLET20' CONTAINER40' CONTAINER
WITH 2MM PADDING1215*125*12+2mm10pcs/ctn48ctns/plt20plts/20GP33plts/40GP
16kgs(35.6lbs)/ctn768kgs/plt15360kgs/20GP25344kgs/40GP
1.52sqm(16.3sqft)/ctn73sqm(784.3sqft)/plt1458sqm(15686sqft)/20GP2409sqm/40GP

1215*125*8+2mm16pcs/ctn44ctns/plt20plts/20GP33plts/40GP
17.5kgs(38.9lbs)/ctn770kgs/plt15400kgs/20GP25410kgs/40GP
2.43sqm(26.1sqft)/ctn106.9sqm(1150.5sqft)/plt2138.4sqm(23010sqft)/20GP3528sqm/40GP

1215*143*12+2mm10pcs/ctn42ctns/plt20plts/20GP33plts/40GP
18.3kgs(40.7lbs)/ctn768.6kgs/plt15372kgs/20GP25364kgs/40GP
1.74sqm(18.7sqft)/ctn73.1sqm(785.2sqft)/plt1462sqm(15704sqft)/20GP2413sqm/40GP

1215*143*8+2mm9pcs/ctn60ctns/plt20plts/20GP36plts/40GP
11.5kgs(32.2lbs)/ctn690kgs/plt13800kgs/20GP24840kgs/40GP
1.56sqm(16.8sqft)/ctn93.7sqm(1009.5sqft)/plt1876sqm(20191sqft)/20GP3373sqm/40GP

1215*165*12+2mm7pcs/ctn55ctns/plt20plts/20GP30plts/40GP
15kgs(33.3lbs)/ctn825kgs/plt16500kgs/20GP24750kgs/40GP
1.4sqm(15.1sqft)/ctn77sqm(830.5sqft)/plt1540sqm(16610sqft)/20GP2310sqm/40GP

1215*165*8+2mm12pcs/ctn48ctns/plt20plts/20GP24plts/40GP
22kgs(48.9lbs)/ctn1056kgs/plt21120kgs/20GP25344kgs/40GP
2.4sqm(25.9sqft)/ctn115.5sqm(1243.2sqft)/plt2309sqm(24864sqft)/20GP2772sqm/40GP

1215*195*12+2mm6pcs/ctn55ctns/plt20plts/20GP30plts/40GP
15kgs(33.3lbs)/ctn825kgs/plt16500kgs/20GP24750kgs/40GP
1.42sqm(15.3sqft)/ctn78.2sqm(841.5sqft)/plt1564sqm(16830sqft)/20GP2346sqm/40GP

1215*195*8+2mm8pcs/ctn60ctns/plt20plts/20GP30plts/40GP
14kgs(31.1lbs)/ctn840kgs/plt16800kgs/20GP25200kgs/40GP
1.9sqm(20.4sqft)/ctn114sqm(1224sqft)/plt2280sqm(24480sqft)/20GP3420sqm/40GP

810*147*12+2mm14pcs/ctn49ctns/plt20plts/20GP29plts/40GP
18kgs(40lbs)/ctn882kgs/ctn17640kgs/20GP25578kgs/40GP
1.67sqm(17.9sqft)/ctn81.8sqm(880.5sqft)/plt1636sqm(17603sqft)/20GP2372sqm/40GP

2430*195*10+2mm5pcs/ctnIN BULK720ctns/20GP
22kgs(48.9lbs)/ctn15840kgs/20GP
2.37sqm(25.5sqft)/ctn1706sqm(18360sqft)/20GP


LOADING PROCESS


Ready to loading:

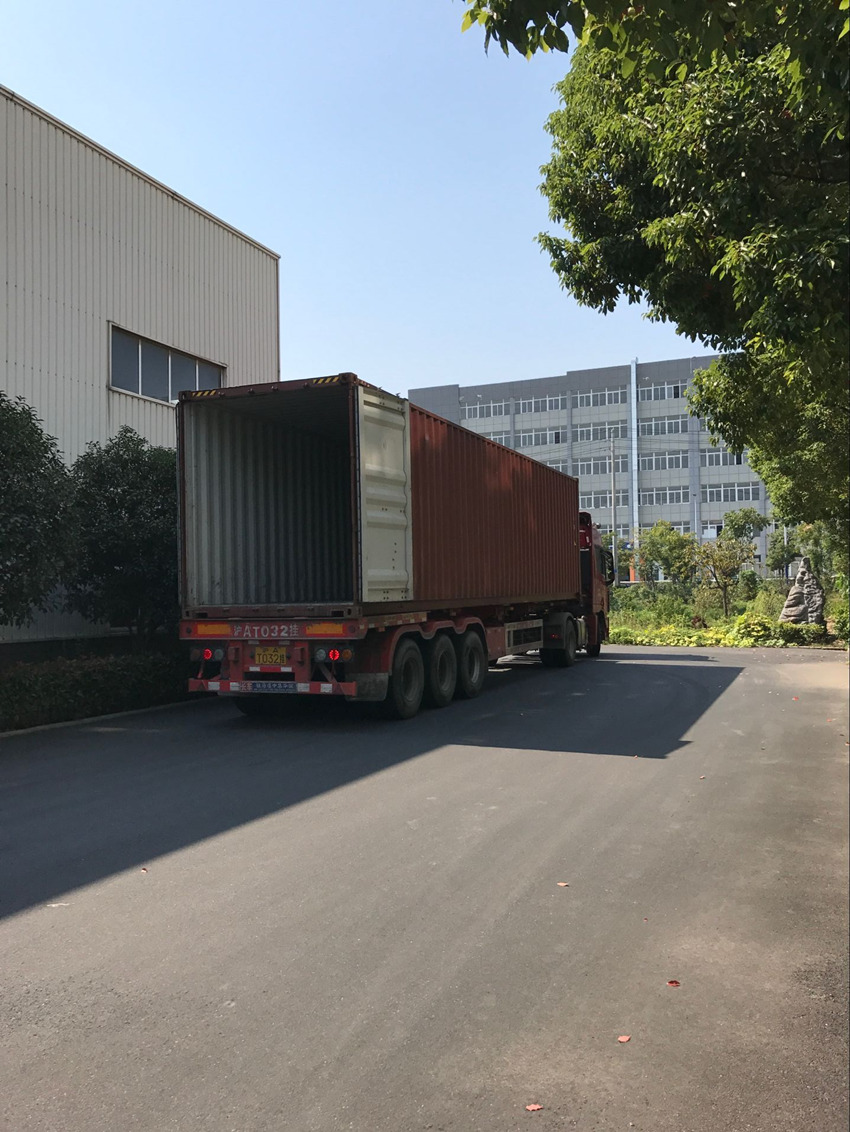

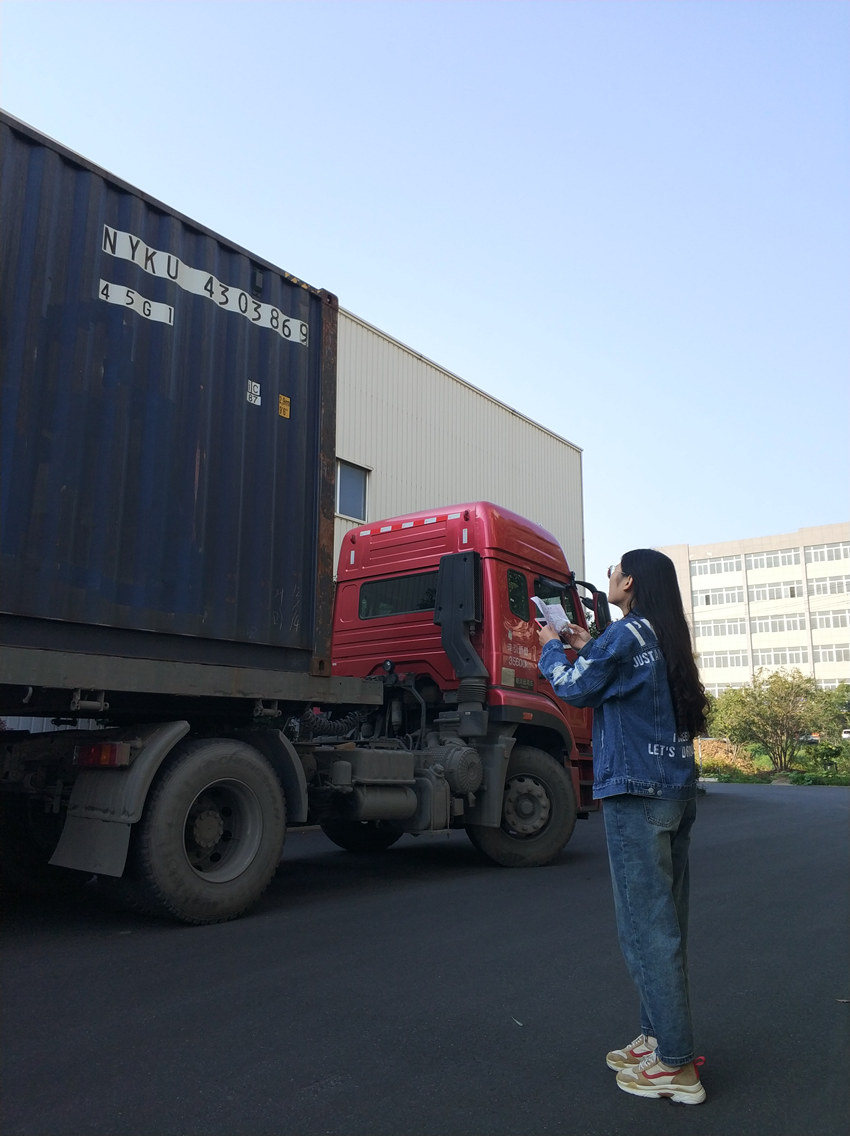

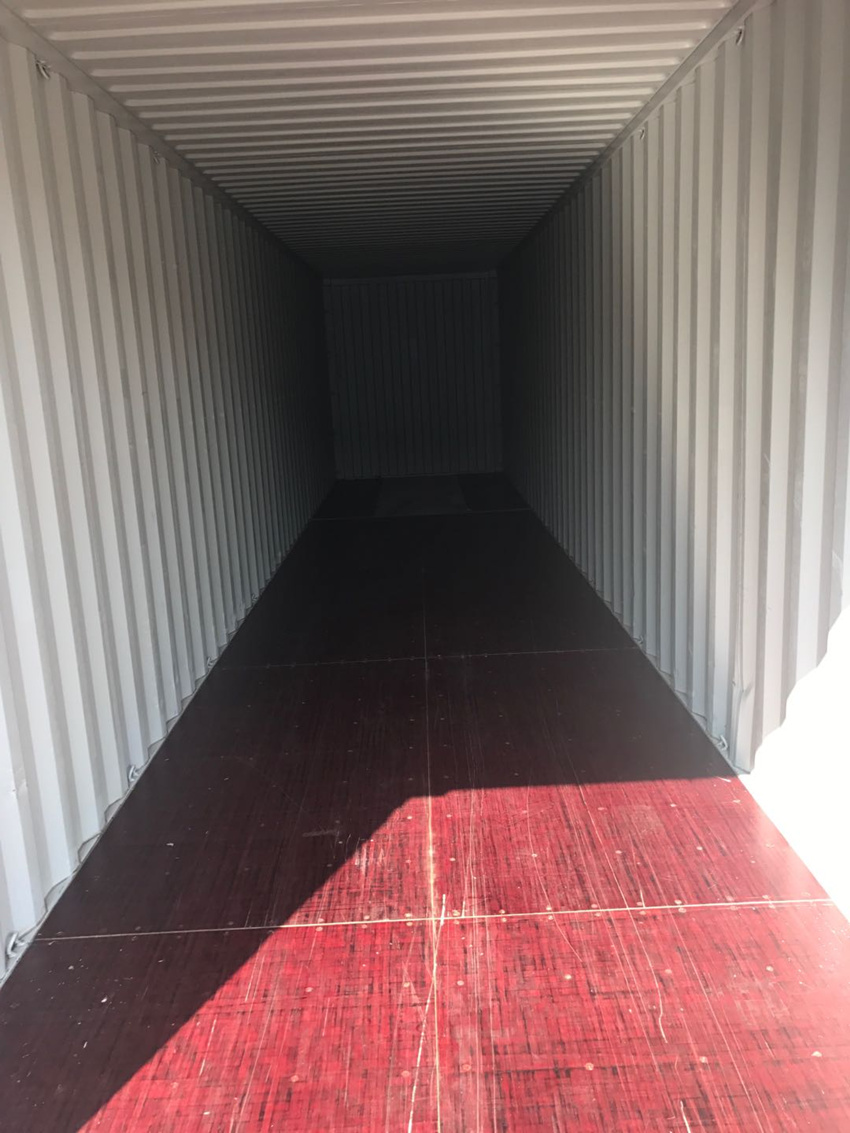

Check the information on the container loading plan brought by the driver, including container number and seal number. It’s important to check if the container is in good condition. And then, take a photo of the packing list, the loading plan and the empty container.

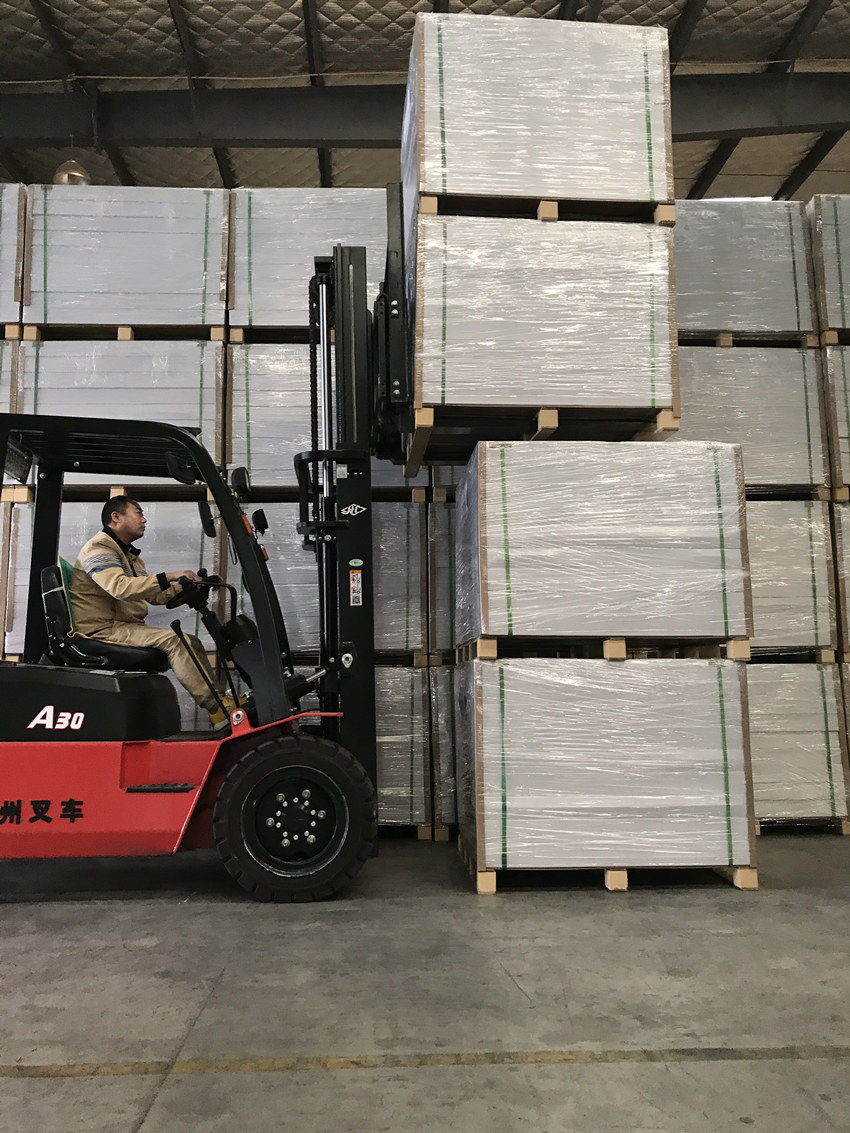

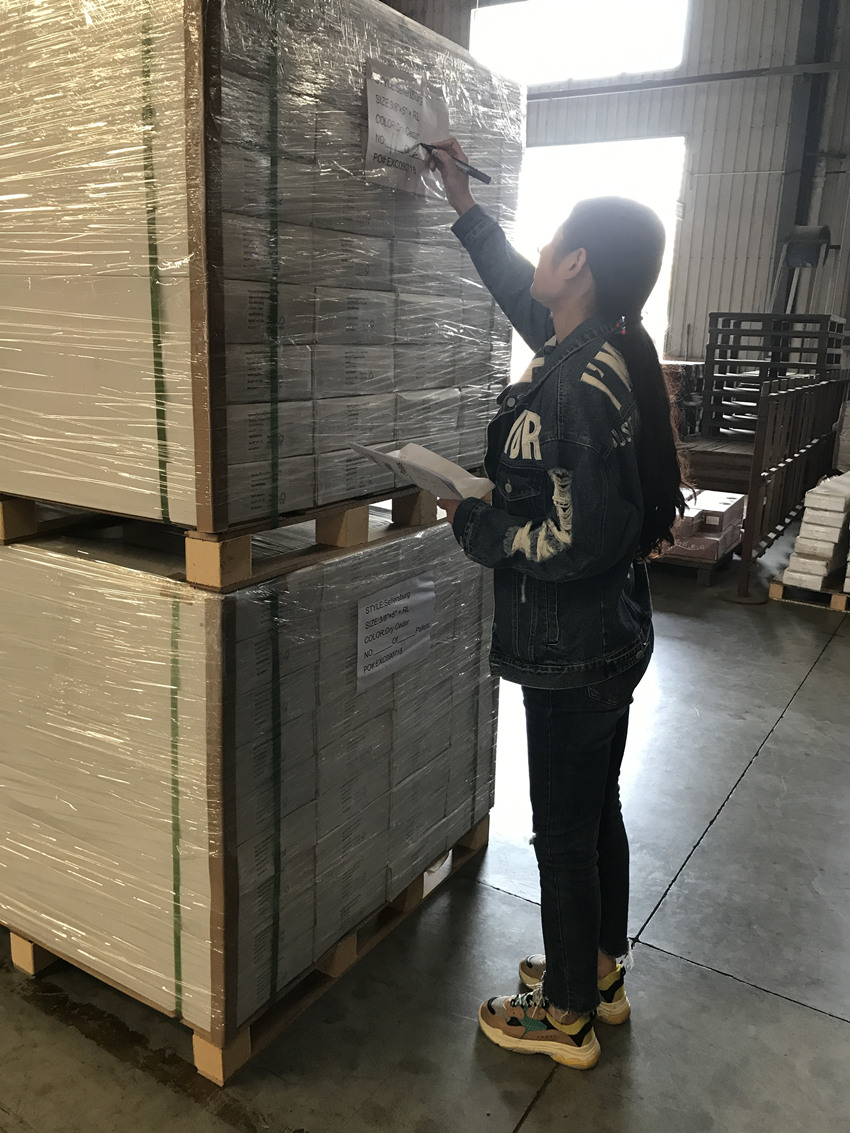

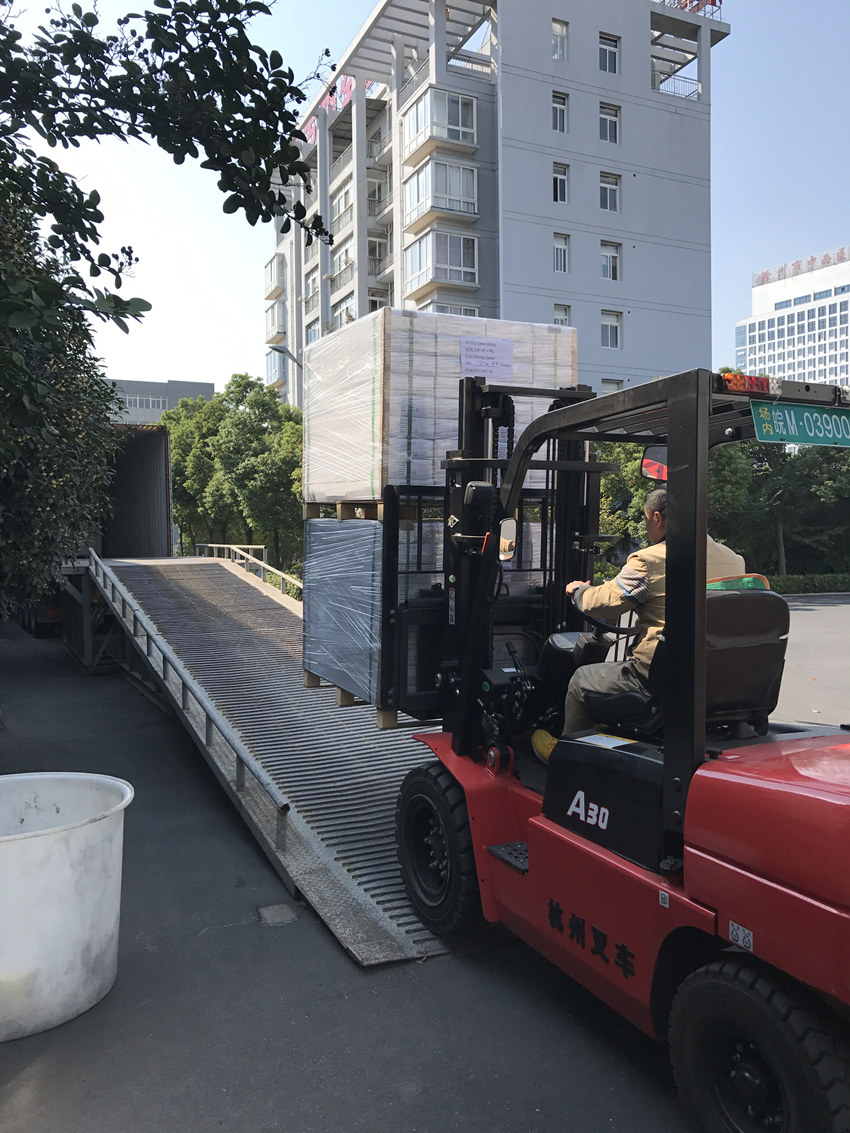

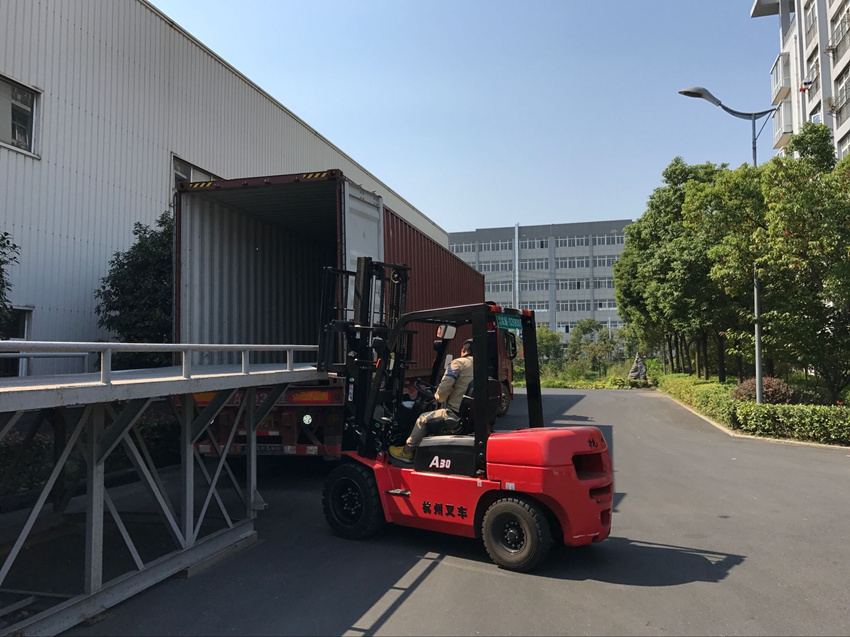

Start loading, fill out the shipping marks and check all the information to be shipped(the customer’s po#, shipping mark and packaging).

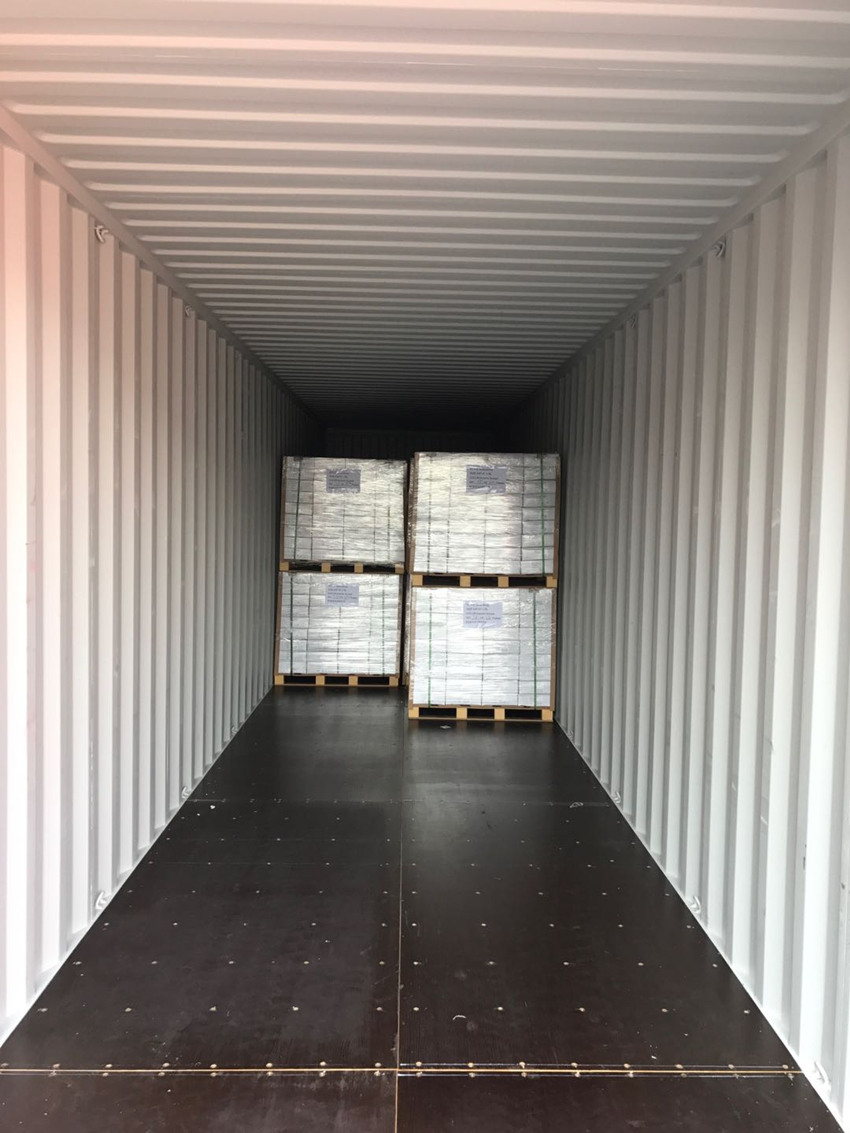

Take photos when loading to half

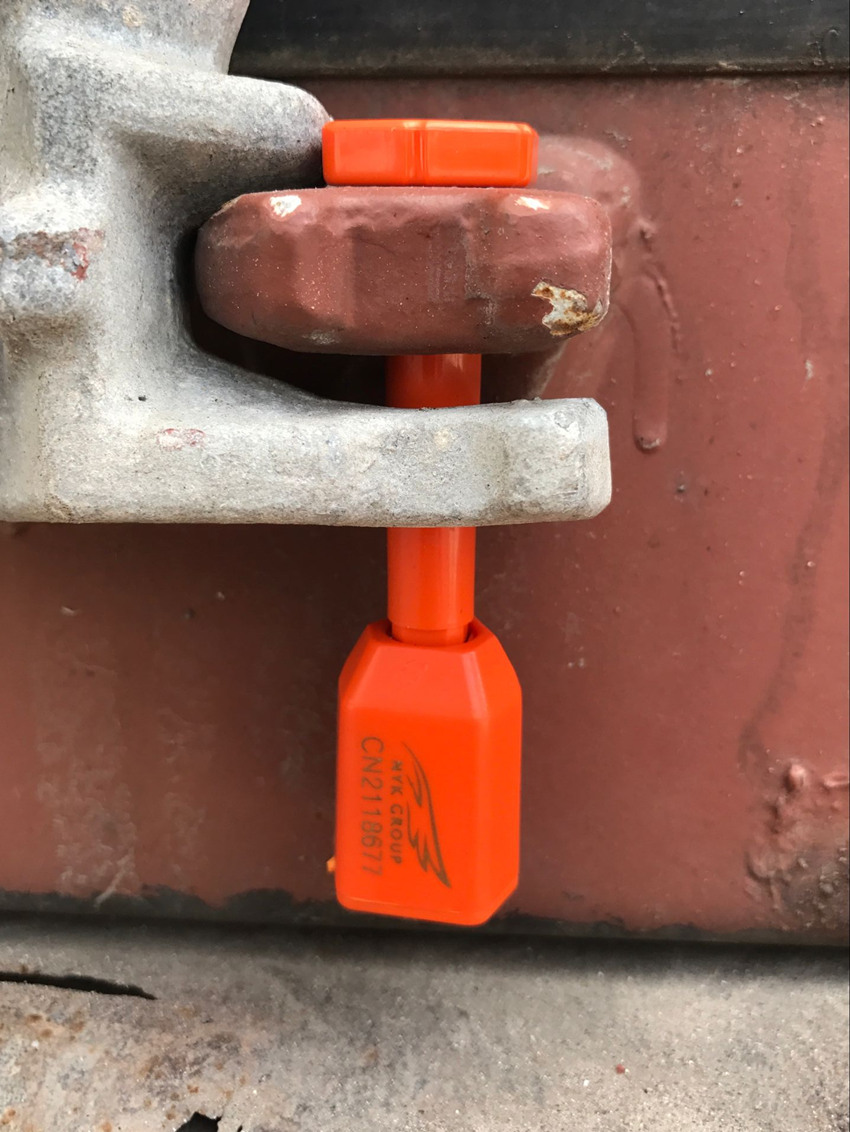

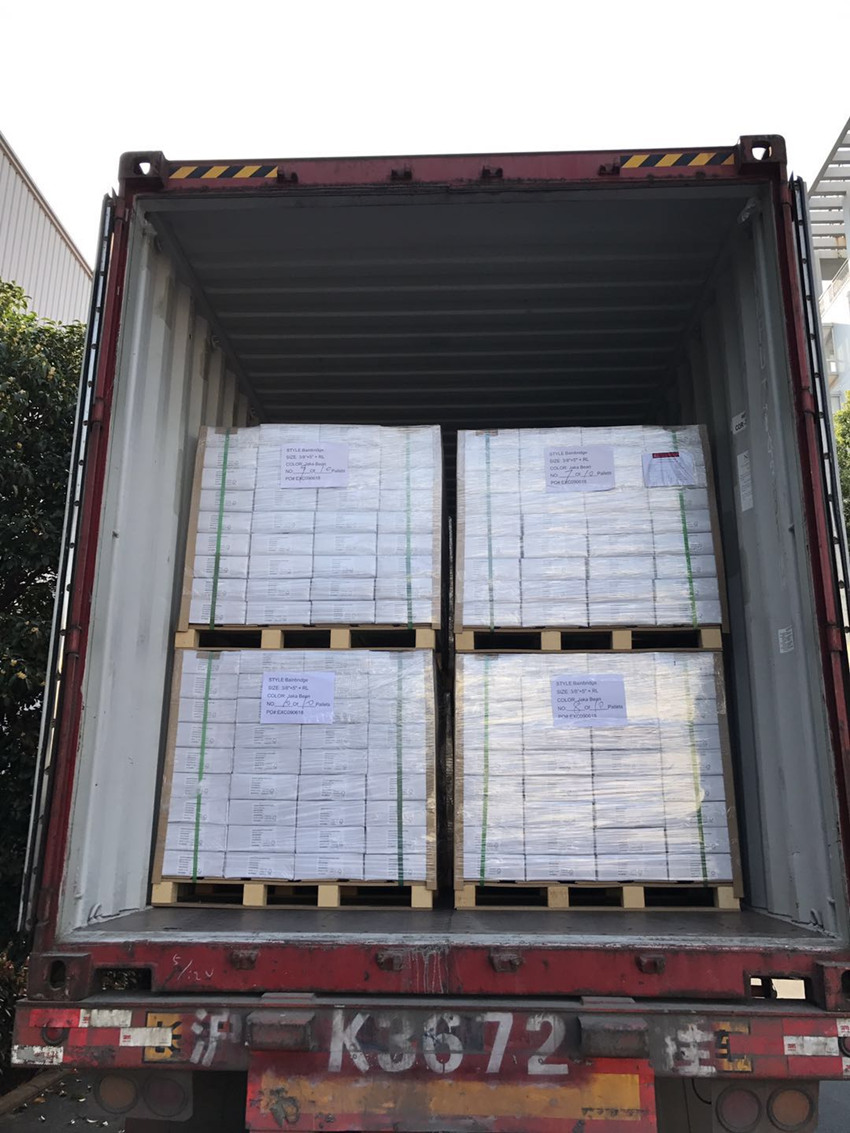

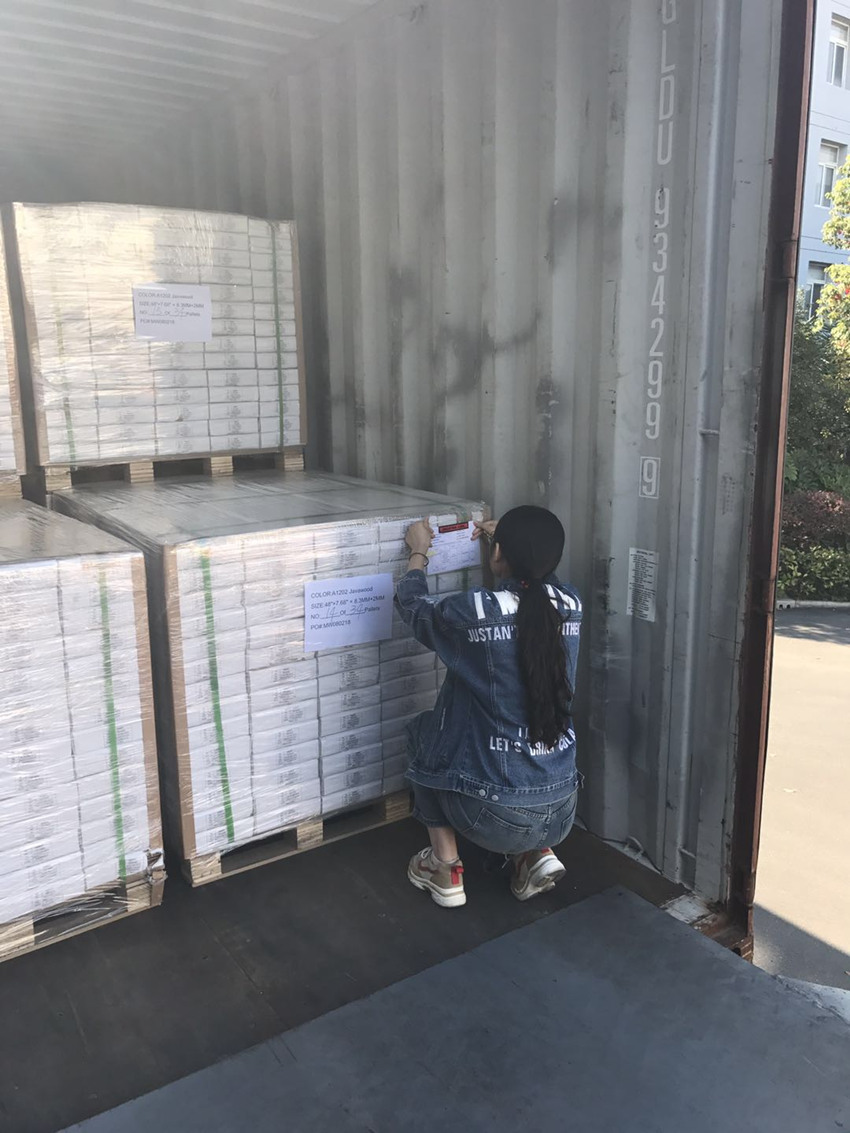

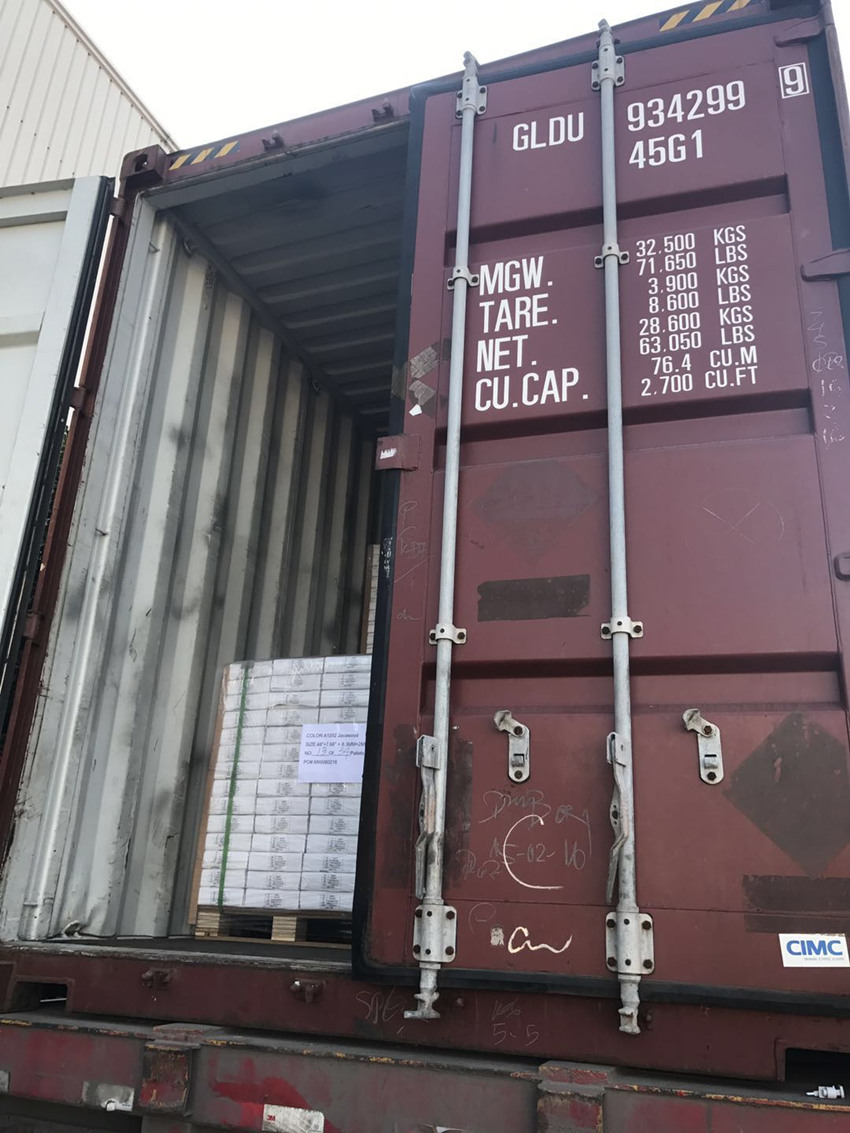

Loading finish, stick the packing list paper on the last pallet, and then take photos for the loaded goods, packing list and seal number.
